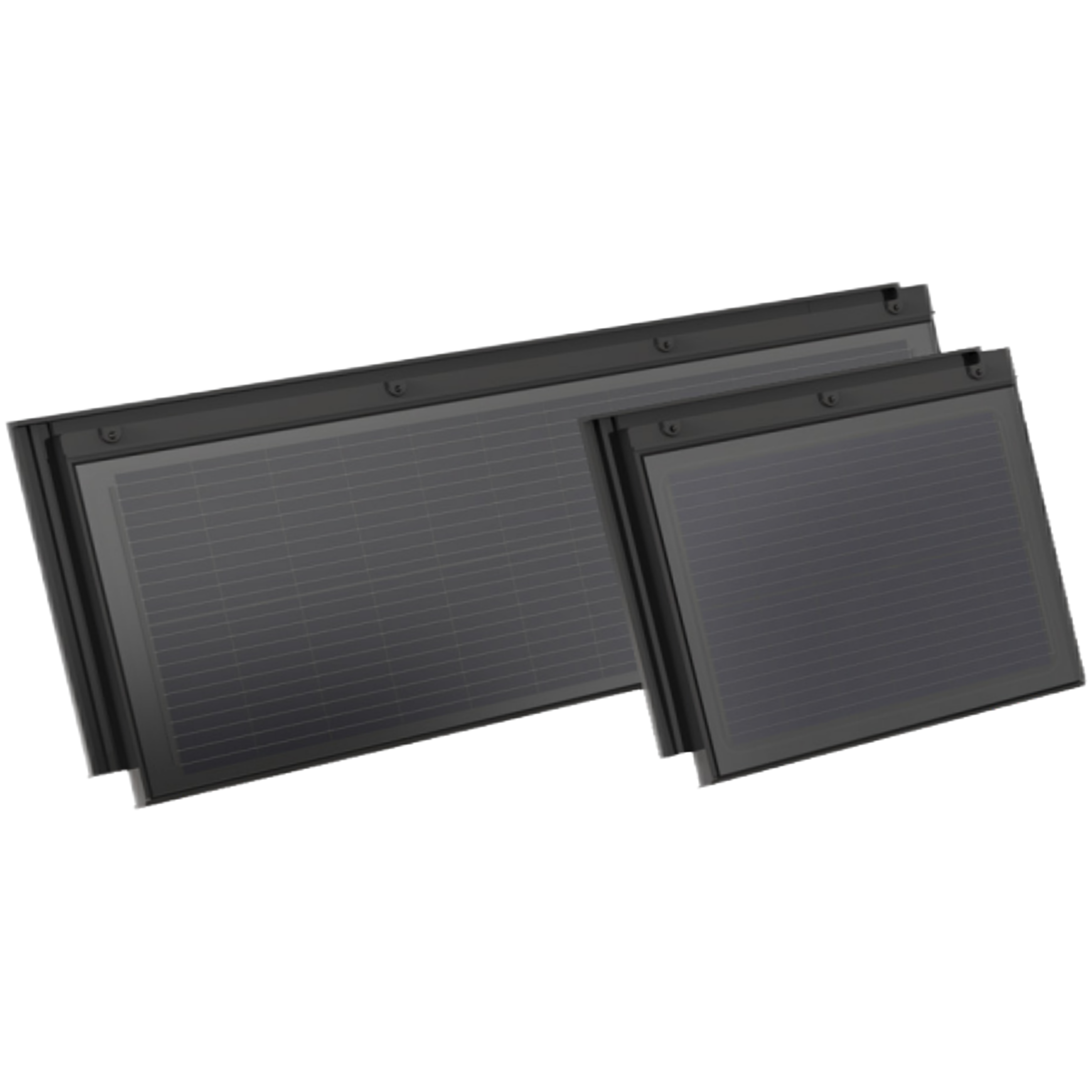

Experience Exceptional Strength in Extreme Conditions with Cailin T-Max Tile_O

Cailin T-Max Tile_O features a double-layer toughened glass design for battery protection and resilience against extreme weather conditions. Utilizing premium weather-resistant polymer resin composite material as the bottom support, can be easily installed directly on roof battens, ensuring simplicity and convenience. With its unique structure, T MAX O offers exceptional strength and durability, boasting excellent weather resistance to withstand various adverse conditions, including hail and heavy snow, with a load grade of 2400pa.

Get a Quote Technical documents

Attachment:

Tile_O

Specification Parameters
Technical Documents

PHYSICAL PARAMETERS
Color	Black		Red(JSA10-202)		Grey(JSA10-102)
Product model	JS3BDG-5e 1/2	JS90DG-13e 1/2	JS31DG-5e 1/2	JS75DG-13e 1/2	JS32DG-5e 1/2	JS78DG-13e 1/2
Dimensions	630*480mm	1260*480mm	360*480mm	1260*480mm	630*480mm	1260*480mm
Weight	7.5kg	15.5kg	7.5kg	15.5kg	7.5kg	15.5kg
Cell(material/dimensions)	18291mm (25)	18291mm (212)	18291mm (25)	18291mm (212)	18291mm (25)	18291mm (212)
Junction box	≥IP67	≥IP67	≥IP67	≥IP67	≥IP67	≥IP67
Cable type	450mm/4mm²	900mm/4mm²	450mm/4mm²	900mm/4mm²	450mm/4mm²	900mm/4mm²
Glass (material/thickness)	Tempered glass/3.2mm+3.2mm
Plug connect or	MC4
Life span	>30years

ELECTRICAL PARAMETERS(STC)
Solar cells	Monocrystalline
Power output (P_max)	38W	90W	31W	75W	32W	78W
Module efficiency (%)	17.30%	18.90%	14.10%	15.80%	14.50%	16.40%
Voltage at Pmax (V_mpp)	5.71V	13.7V	5.58V	13.4V	5.63V	13.5V
Current at Pmax (I_mpp)	6.65A	6.57A	5.56A	5.59A	5.68A	5.78A
Open-circuit current (V_oc)	6.79V	16.3V	6.71V	16.1V	6.76V	16.2V
Short-circuit current (I_sc)	6.97A	6.89A	5.89A	5.93A	5.96A	6.07A
STC:1000W/m irradiance, 25-degree cell temperature, AM1.5g.

PERFORMANCE GRADE		OPERATING CONDITIONS
Load grade	2400Pa	Max. system voltage	1500V_DC
Fireproofing grade	ClassA	Max. series fuse rating	20A
Anti-hail grade	φ25mm/23m/s	Operating temperature	-40℃~+85℃
Operating temperature	-40℃~+85℃	Max. static load, front (e.g., snow)	5400Pa
Operating humidity	0-80%	Max. static load, back (e.g., wind)	2400Pa
		Max. hailst one im pact (diamet er / velocity)	25mm/23m/s

THERMAL CHARACTERISTICS
Nominal operating cell temperature	NOCT	℃	45±2
Temperature coefficient of P_max	γ	%/℃	-0.36
Temperature coefficient of V_OC	β_VOC	%/℃	-0.3
Temperature coefficient of I_SC	α_ISC	%/℃	0.05
