T-max Tile_L

Lightweight Solar Tiles for Versatile Roofing Solutions with Cailin T-Max Tile_L

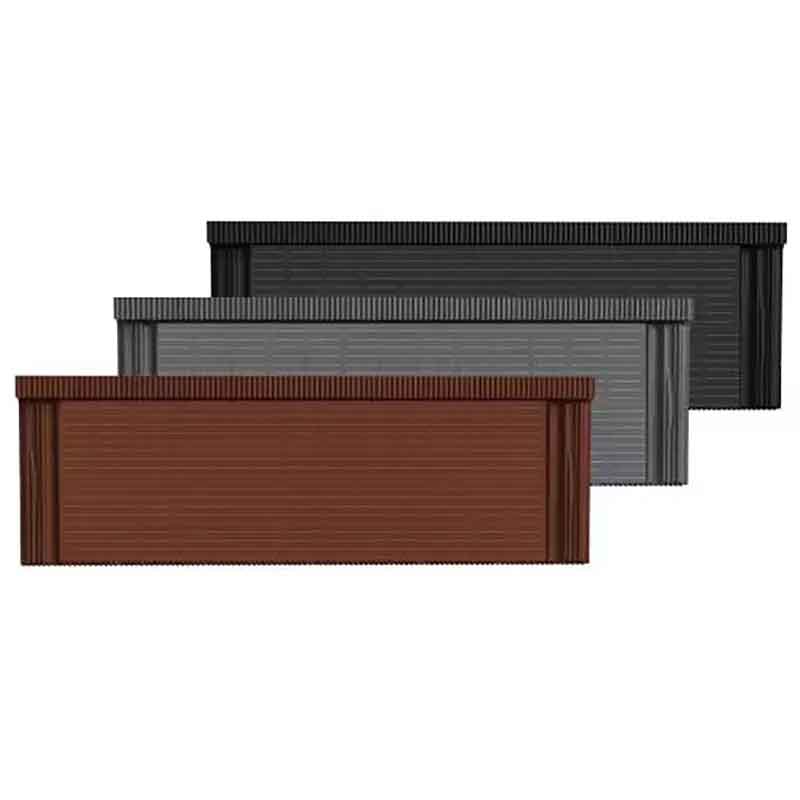

Cailin T-Max Tile_L emphasizes its key feature: lightness. Originally designed to complement lightweight roofing systems, Cailin solar tiles utilize commercially available stone-coated metal tiles as bottom support, ensuring compatibility with buildings requiring stringent load-bearing capacities. Versatile enough to be used on existing metal tile roofs for renovation or new construction projects, T MAX L offers flexibility and durability for various roofing needs.

Get a Quote Technical documents

Attachment:

Cailin BIPV

Specification Parameters
Technical Documents

PHYSICAL PARAMETERS				ELECTRICAL PARAMETERS(STC)
Product model	JS80D-13d1/2	JS62D-13d1/2	JS66D-13d 1/2	Solar cells	Monocrystalline
Color	Black	Red (JSA10-202)	Grey (JSA10-102)	Power output (Pmax)	80W	62W	66W
Dimensions	1340*420mm			Module efficiency (%)	19.40%	15.0%	16.0%
Weight	6.5kg			Voltage at Pmax (V_mpp)	14.7V	14.1V	14.3V
Glass (material/thickness)	Tempered glass/3.2mm+Backplane			Current at Pmax (I_mpp)	5.44A	4.40A	4.62A
Cell	16683mm (213)			Open-circuit current (V_oc)	17.7V	17.2V	17.3V
Junction box	≥IP67			Short-circuit current (I_sc)	5.71A	4.64A	4.85A
Cable type	500mm/4mm²			STC:1000W/m irradiance, 25-degree cell temperature, AM1.5g.
Plug connector	MC4
Life span	>30years

PERFORMANCE GRADE		OPERATING CONDITIONS
Load grade	2400Pa	Max. system voltage	1500V_DC
Fireproofing grade	ClassA	Max. series fuse rating	16A
Anti-hail grade	φ25mm/23m/s	Operating temperature range	-40℃~+85℃
Operating temperature	-40℃~+85℃	Max. static load, front (e.g., snow)	5400Pa
Operating humidity	0-80%	Max. static load, back (e.g., wind)	2400Pa
		Max. hailstone impact (diameter / velocity)	25mm/23m/s

THERMAL CHARACTERISTICS
Nominal operating cell temperature	NOCT	℃	45±2
Temperature coefficient of P_max	γ	%/℃	-0.36
Temperature coefficient of V_OC	β_VOC	%/℃	-0.3
Temperature coefficient of I_SC	α_ISC	%/℃	0.05
