CAILIN

Cailin Shake

Embrace Classic Charm with Cailin Shake Roofing Tiles

Cailin Shake features the wood-grain appearance of traditional shake. Its deep-ribbed profile is designed to enhance the shadow lines and create visual contrast. With Cailin Shake roofing you can enjoy this look combined with all the benefits of stone-coated steel: exceptional weather and fire resistance, energy efficiency and long life. Cailin Shake roofing tiles are available in a choice of colors from deep charcoals to earthy browns and greens, and the blended tones of weathered shakes.

Get a Quote Technical documents

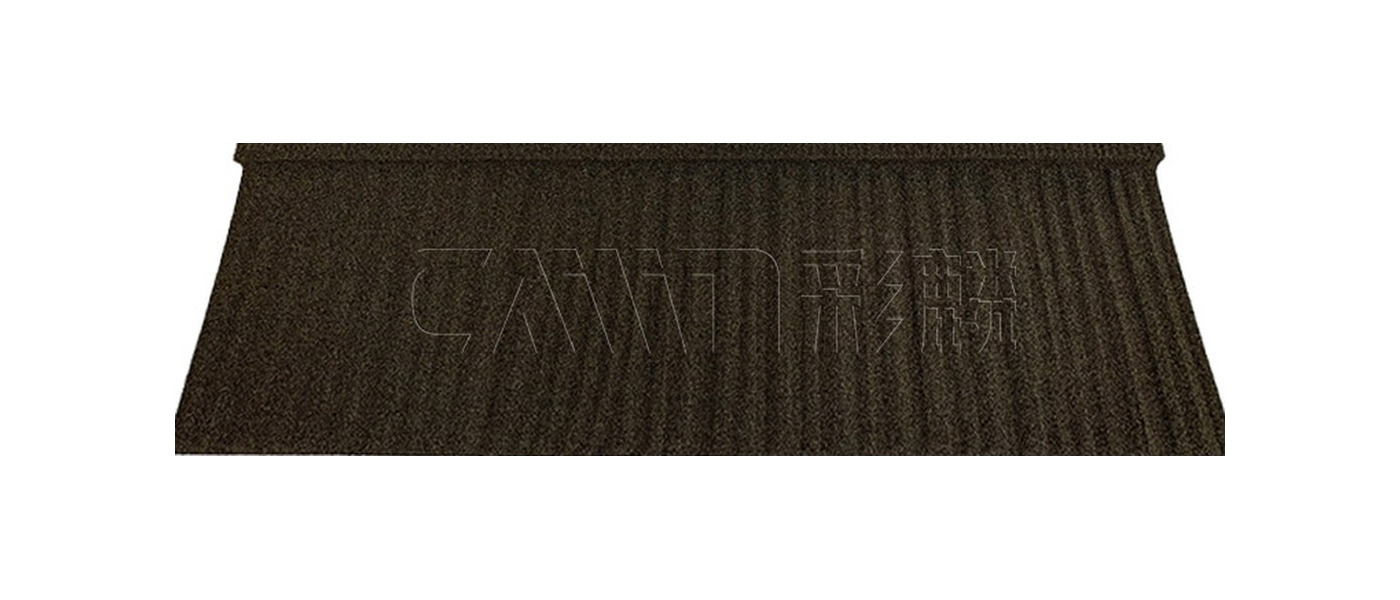

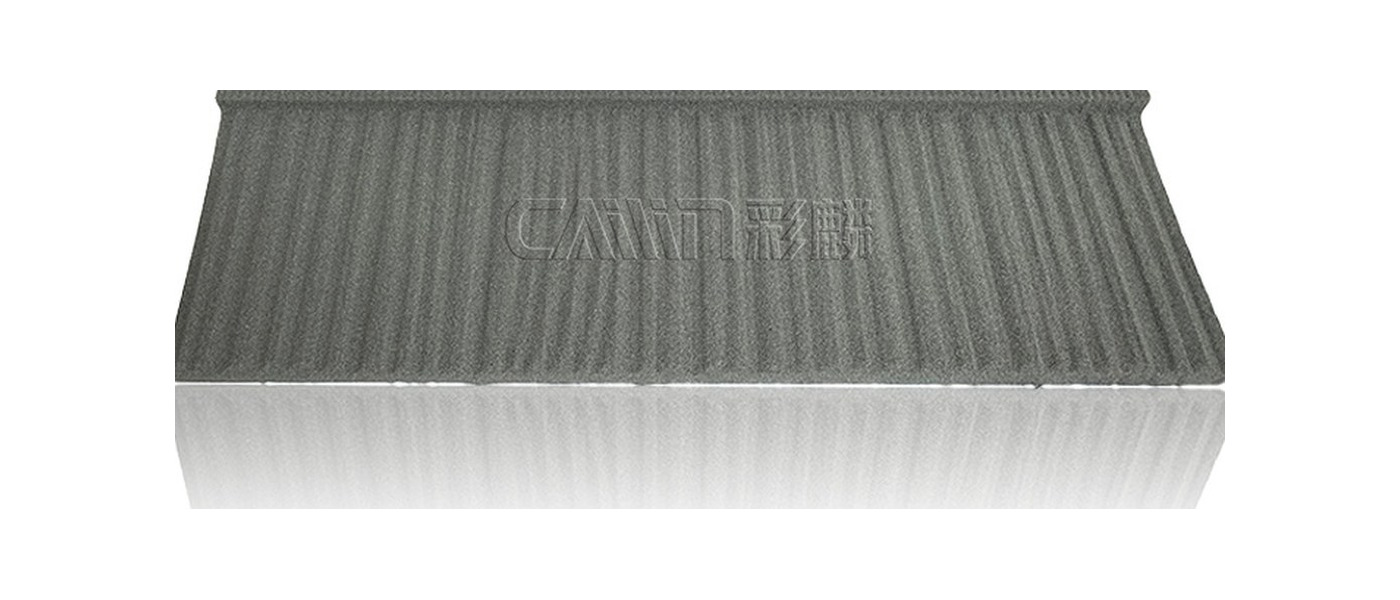

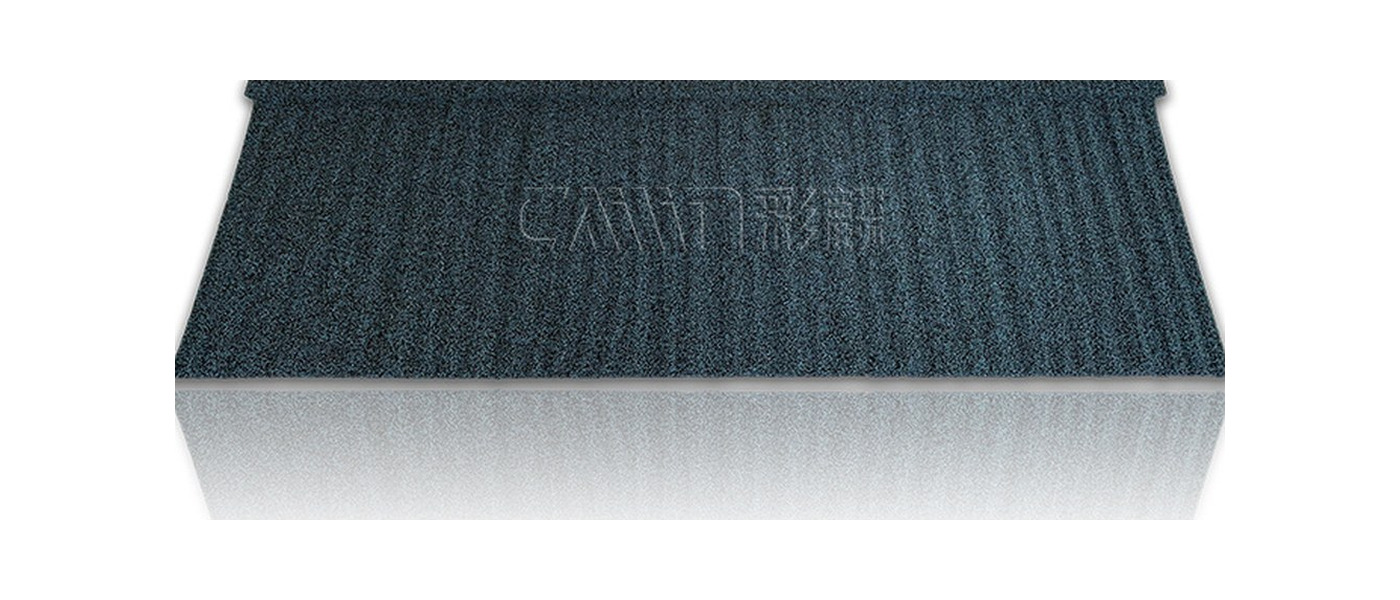

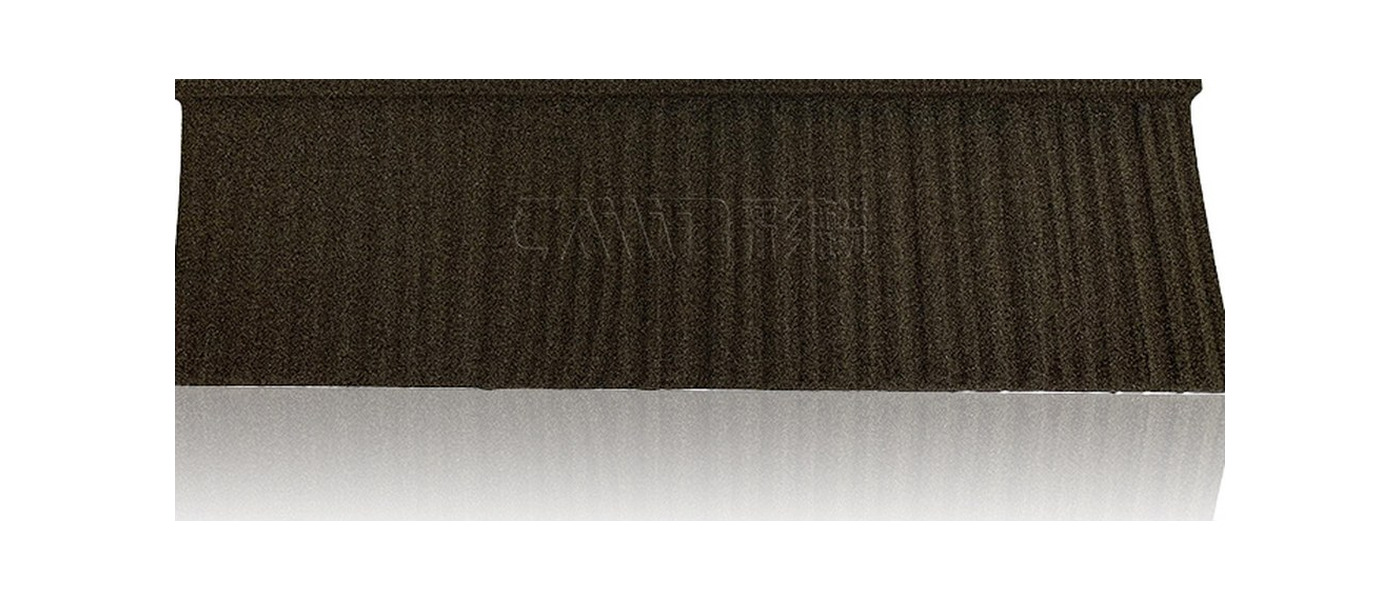

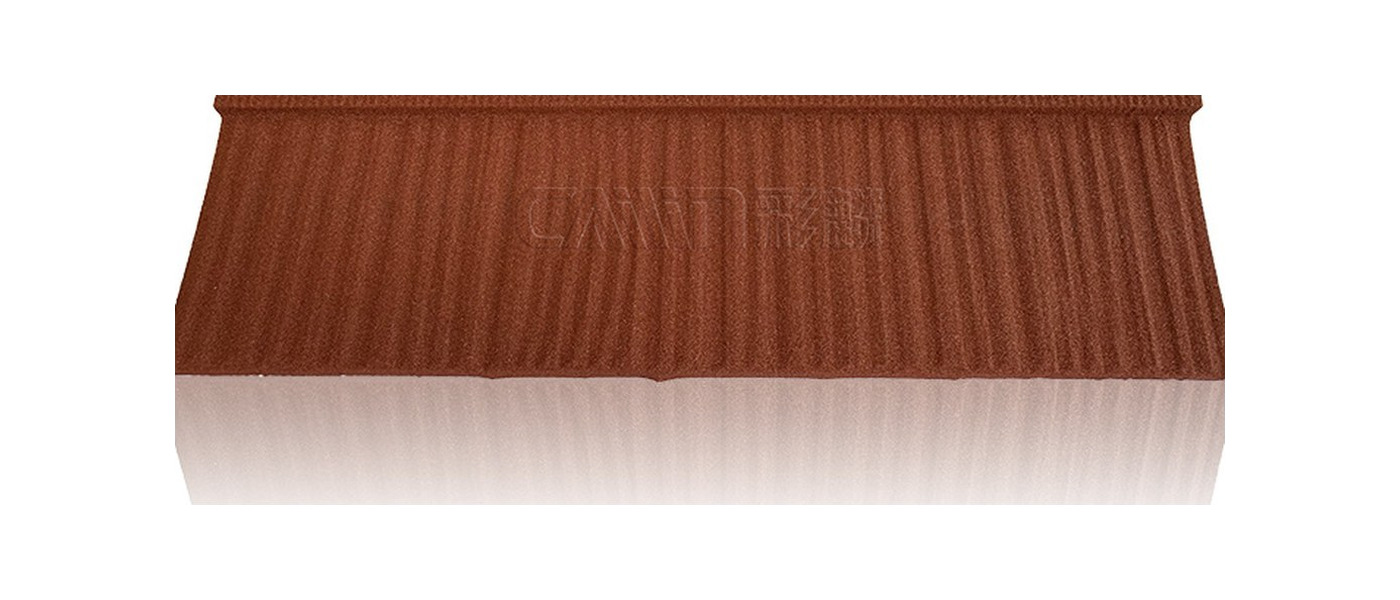

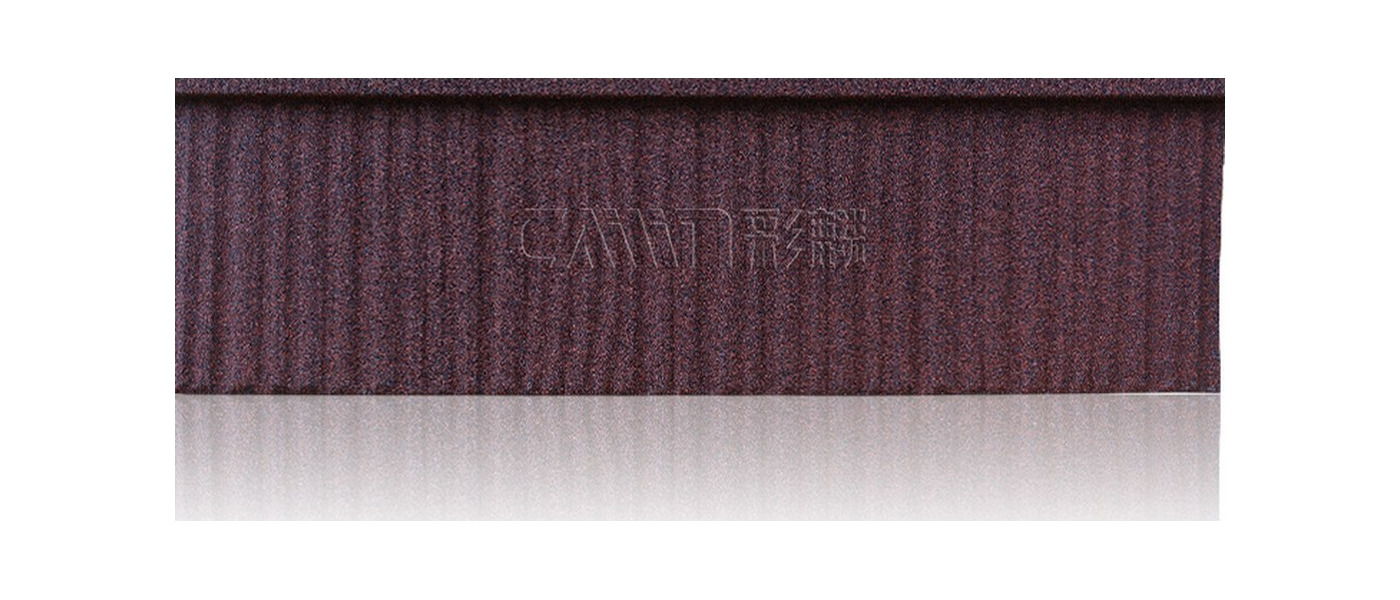

Colors:

Features & Benefits
Specification Parameters
Installation Video
Technical Documents

FIRE RESISTANCE:

CAILIN stone-coated metal tiles are designed to resist fire, providing a safer roofing option.

WIND RESISTANCE:

Utilizing CAI LI N's unique tile installation structure, these tiles are capable of withstanding hurricanes.

WITHSTAND EARTHQUAKE:

With each tile weighing only one-sixth of traditional tile weight, they minimize damage during earthquakes.

STORM RESISTANCE:

They offer exceptional protection against heavy rain, ensuring a leak-free roofing system.

RESISTANT TO ALGAR:

Using CAILIN's unique algae-resistant colored sand achieves better algae resistance,maintaining a clean and attractive appearance over time.

REUSABLE:

CAILIN tiles are eco-friendly and recyclable, reducing their impact on the environment.

EASY INSTALLA:

These tiles are designed for simple installation, making the roofing process more efficient.

Product Name	Shake Tile
Material	Galvalume steel (Aluminum Zinc plated steel sheet=PPGL), Natural stone chip, Acrylic resin glue
Tile Size	1340x420mm
Effective Size	1260x370mm
Thickness	0.35mm, 0.40mm, 0.45mm, 0.50mm, 0.55mm, Customized
Weight	2.35-3.50kgs/pc
Coverage Area	0.46Sq.m./pc; 4.93/Sq.ft./pc
Certificate	SONCAP, COC, UL, ISO9001, CE

1, Installation Of Batten

2, Installation Of Starter Drip Edge

3, Installation Of Vallery Cover

4, Installation Of Roofing Panel

5, Installation Of Ridge Cap

6, Installation Of Dormer Window Accessories

Cailin Stone Coated Metal Roofing Catalog

Cailin Stone Coated Metal Roofing Catalog 37MB

Download View online
Cailin Stone Coated Roof Tile Installation manua

Cailin Stone Coated Roof Tile Installation manua 1MB

Download View online

You Can Learn More Professional Knowledge Here

Check the more detailed written installation guides, product manuals available for detailed technical specifications.
